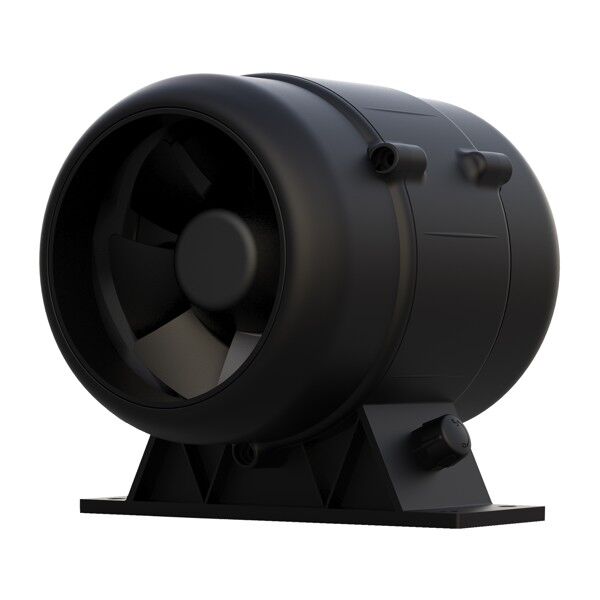

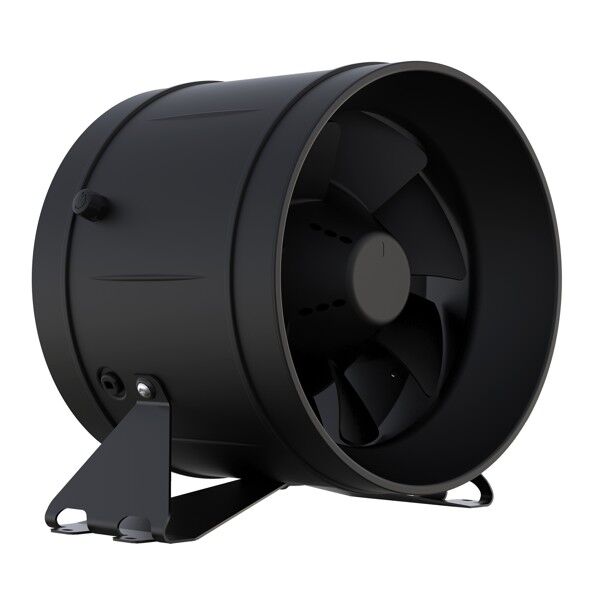

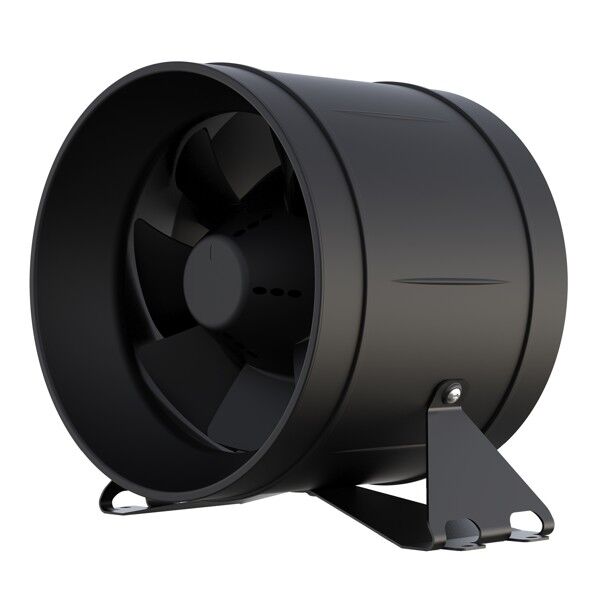

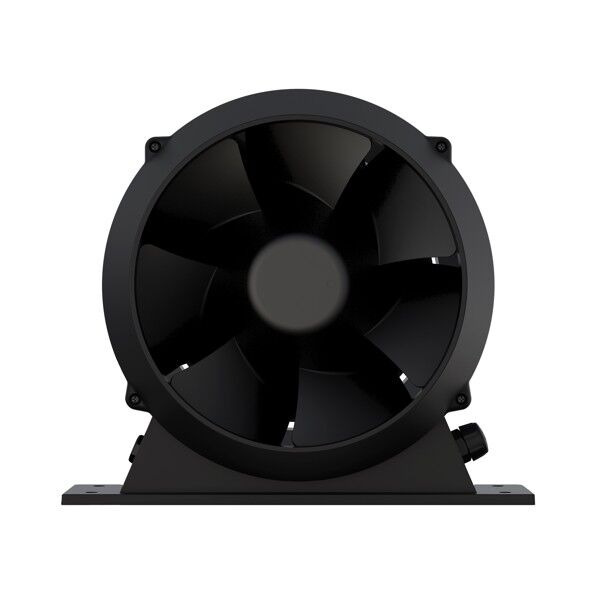

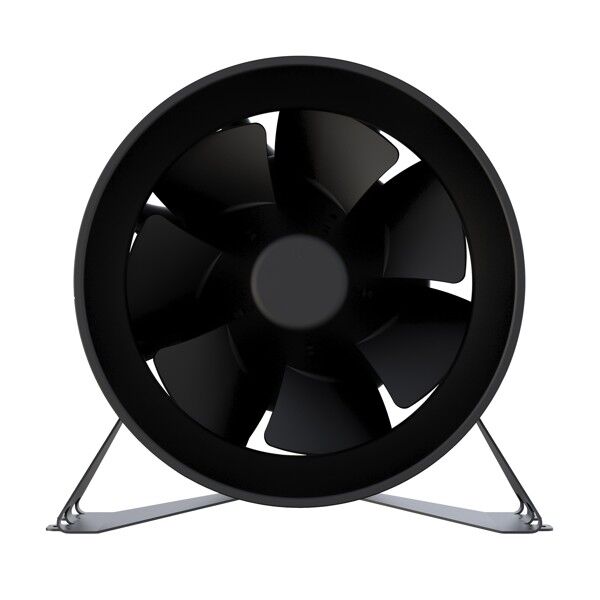

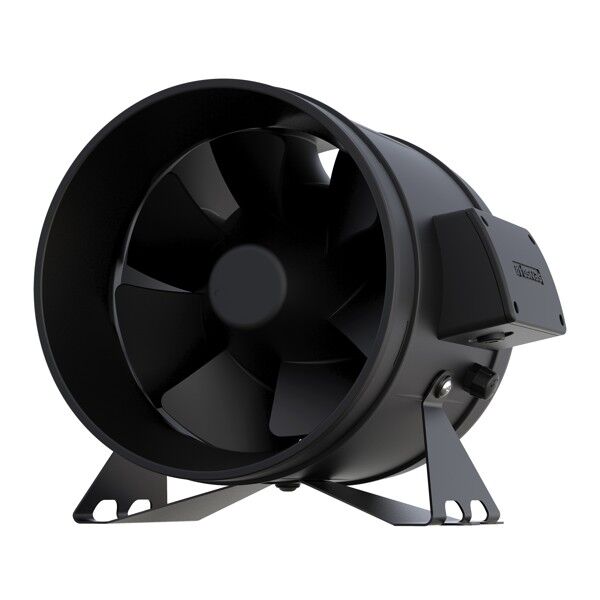

Dura Mixed Flow Fan by HVC – 100mm to 250mm

The Headwind HVC Dura Mixed Flow Fan range provides reliable, high-performance ventilation for grow tents, greenhouses, propagation areas, hydroponic systems and other horticultural environments. Available in five sizes from 100mm to 250mm, the range provides flexible airflow options for everything from small growing spaces to larger commercial ventilation systems.

Designed for demanding, high-humidity environments, the Dura range features an IP68 waterproof rating for protection against moisture and dust. The mixed-flow design provides strong airflow and static pressure, while the included speed controller allows you to adjust ventilation to suit your growing environment.

The 150mm, 200mm and 250mm models feature EC mixed-flow motors for efficient, powerful and quiet operation. With airflow capacities ranging from 275 m³/h to 1,808 m³/h, there is a Dura fan to suit a wide range of ventilation requirements.

Features & Benefits

  • IP68 Waterproof Rating: Designed to withstand high-humidity and moisture-rich horticultural environments, providing reliable protection against water and dust.
  • Mixed Flow Technology: Combines strong airflow with high static pressure for efficient air movement through ducting and ventilation systems.
  • EC Motor Technology: The 150mm, 200mm and 250mm models use efficient EC mixed-flow motors for powerful airflow with lower energy consumption and quiet operation.
  • Speed Controller Included: Adjust fan speed to suit temperature, humidity and air exchange requirements without needing to purchase a separate controller.
  • Five Sizes Available: Choose from 100mm, 125mm, 150mm, 200mm and 250mm models to suit different growing spaces and ventilation requirements.
  • High Airflow Performance: Airflow ranges from 275 m³/h on the compact models up to 1,808 m³/h on the 250mm model.
  • Suitable for High-Humidity Environments: Ideal for grow tents, greenhouses, propagation areas, hydroponic facilities and other environments where reliable ventilation is essential.
  • Compact Inline Design: Designed for straightforward installation into intake and exhaust ventilation systems.

Specifications

  • Brand: Headwind HVC
  • Product Range: Dura Mixed Flow Fan
  • Fan Type: Mixed Flow Inline Fan
  • Available Sizes: 100mm, 125mm, 150mm, 200mm and 250mm
  • Waterproof Rating: IP68
  • Speed Control: Controller Included
  • Airflow Capacity: 275–1,808 m³/h
  • Applications: Grow tents, greenhouses, propagation areas, hydroponic growing spaces, indoor grow rooms and intake or exhaust ventilation systems

Fan Size Guide

Fan Size Motor Type Airflow Power IP Rating Controller Recommended Application
100mm Dura Mixed Flow Fan Inline 275 m³/h 18W IP68 Included Small grow tents up to approximately 1.0m x 1.0m or secondary exhaust runs
125mm Dura Mixed Flow Fan Inline 275 m³/h 18W IP68 Included Grow tents up to approximately 1.2m x 1.2m
150mm Dura Mixed Flow Fan EC Mixed Flow 621 m³/h 45W IP68 Included Grow tents up to approximately 1.5m x 1.5m and medium-sized growing areas
200mm Dura Mixed Flow Fan EC Mixed Flow 1,182 m³/h 85W IP68 Included Grow tents up to approximately 1.5m x 3.0m and larger growing areas
250mm Dura Mixed Flow Fan EC Mixed Flow 1,808 m³/h 150W IP68 Included Grow tents up to approximately 3.0m x 3.0m, commercial growing areas and longer duct runs

Tip: When selecting a fan, consider the size of your growing area, ducting length, bends and any filters or other airflow restrictions. Choosing a larger fan gives you greater flexibility to reduce the speed while maintaining effective air exchange.
