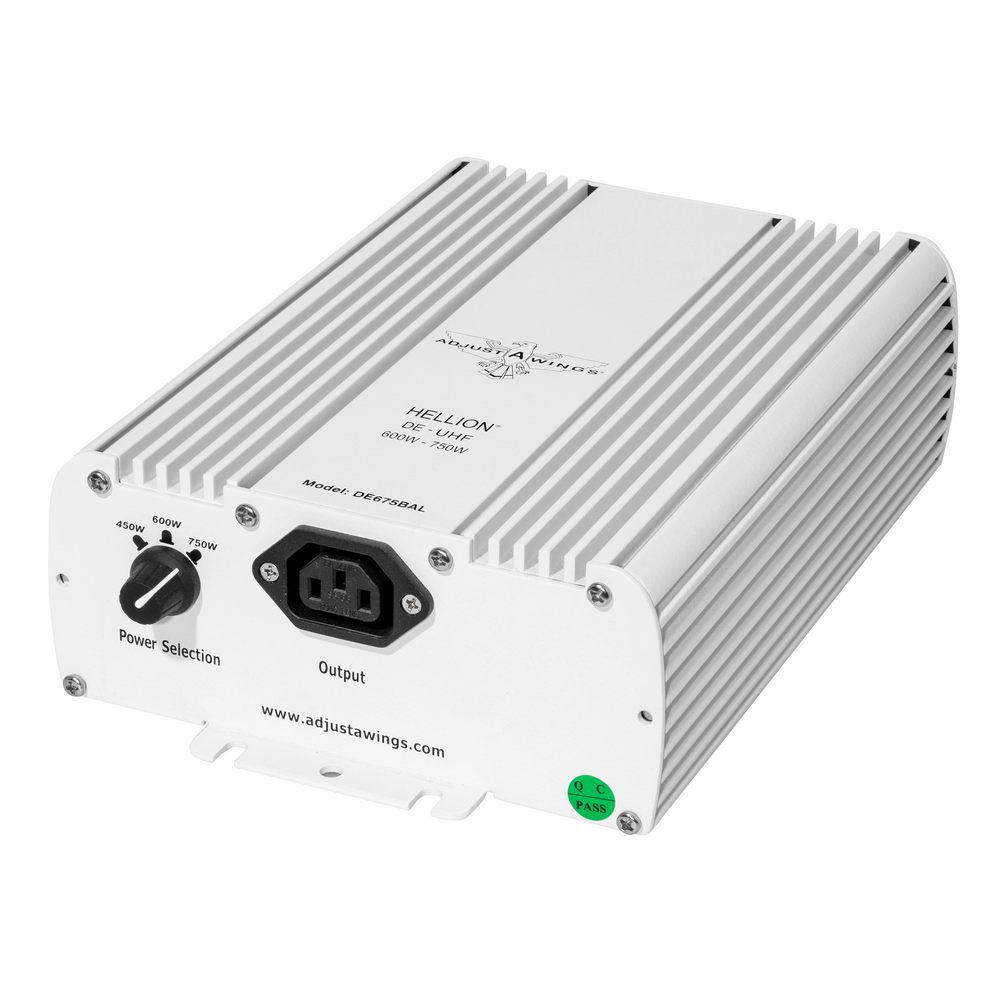

The Hellion HPS and CMH Digital Ballasts refer to our new range of Close Proximity lighting fixtures. Aqua Gardening offers three different Ballast as complete plug n' play illumination kits

The Hellion HPS and CMH Digital Ballasts range were designed to maximize the potential promised by DE-HPS and CMH lamps and liberating them from their “prisons” in greenhouse-style deep-dish reflectors. Hellion is all about harnessing the raw power of DE lamps so that plants (and growers) can truly benefit from the increased output and efficiency.

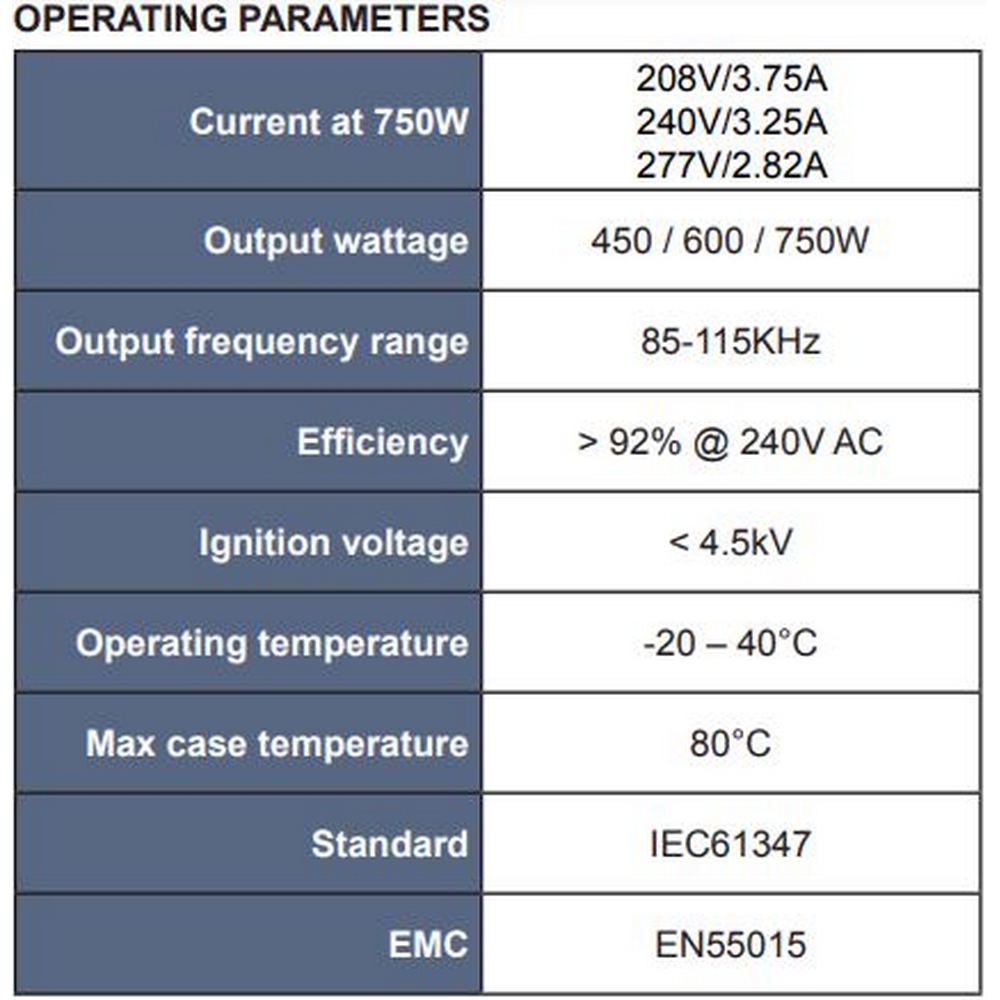

Hellion Digital Ballasts Operating Parameters:

Model 630W 600/750W 1000W
Current 120V/5.8A - 240V/2.9A - 277V/2.5A 208V/3.75A - 240V/3.25 - 277V/2.8A 208V/3.75A -  240V/3.25 - 277V/2.8A
Output wattage(W) 450/550/630 450/550/630 600/750/830/1000/1100
Output frequency 200KHz 85-115KHz 90-160KHz
Efficiency >94% @ 240V AC >94% @ 240V AC >92.5% @ 240V AC
Ignition voltage < 5.0 KV < 4.5  KV < 4.5  KV
Ambient operating temp -20 - 40°C -20 - 40°C -20 - 50°C
Max case temperature 90°C 80°C < 70°C
Standard IEC61347 IEC61347 IEC61347
EMC EN55015 EN55015 EN55015



Hellion Digital Ballasts Input Parameters:

Model 630W 600/750W 1000W
Input Voltage 120V/ 240V/ 277V 208V/ 240V/ 277V 208V to 305V AC
Input frequency 50/60Hz 50/60Hz 50/60Hz
External Control 0 to 10V via RJ11 sockets 0 to 10V via RJ11 sockets 0 to 10V via RJ11 sockets



Hellion Digital Ballasts Lamp Requirements:

Model 630W 600/750W 1000W
Type CMH 630W UHF 750W HPS + MH 1000W HPS UHF
Lamp Voltage 180-220V 180-220V 250V +/- 20V
Max Lamp distance 4.0m(13ft) 4.0m (13ft)** 4.0m(13ft)
** 600/750W: UHF lamps are the same as 400V lamps



Hellion Digital Ballasts Performance:

Model 630W 600/750W 1000W
THD <5% <5% <5%
PF >0.97 >0.99 >0.998 Non dimmed
OCV <300V <440V 300V

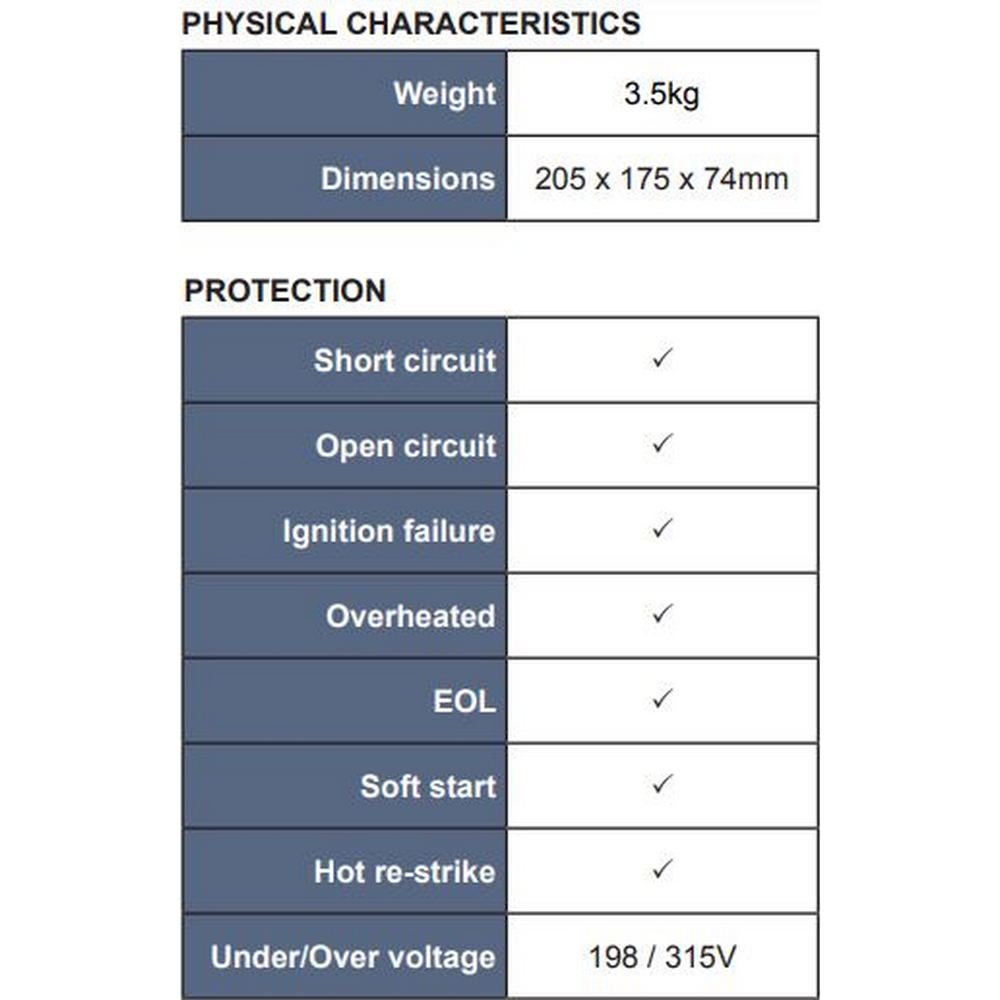

Hellion Digital Ballasts Physical Characteristics:

Model 630W 600/750W 1000W
Weight 3.5kg 3.5kg 4kg
Dimensions(mm) 292 x 175 x 74 205 x 175 x 74 241.5 x 177 x 74

(SKU: 121145)

Specifications
SKU 121145
Brand Adjust A Wing
Warranty Length 12 months
Warranty Conditions Replacement Warranty
Shipping Weight 4.00 kg
Type Indoor Lighting

Replacement Warranty - Store warranty, this product needs to be returned to Aqua Gardening for testing and replacement.



Product Manual

View PDF brochure for Hellion CMH Digital Ballast [630W]
