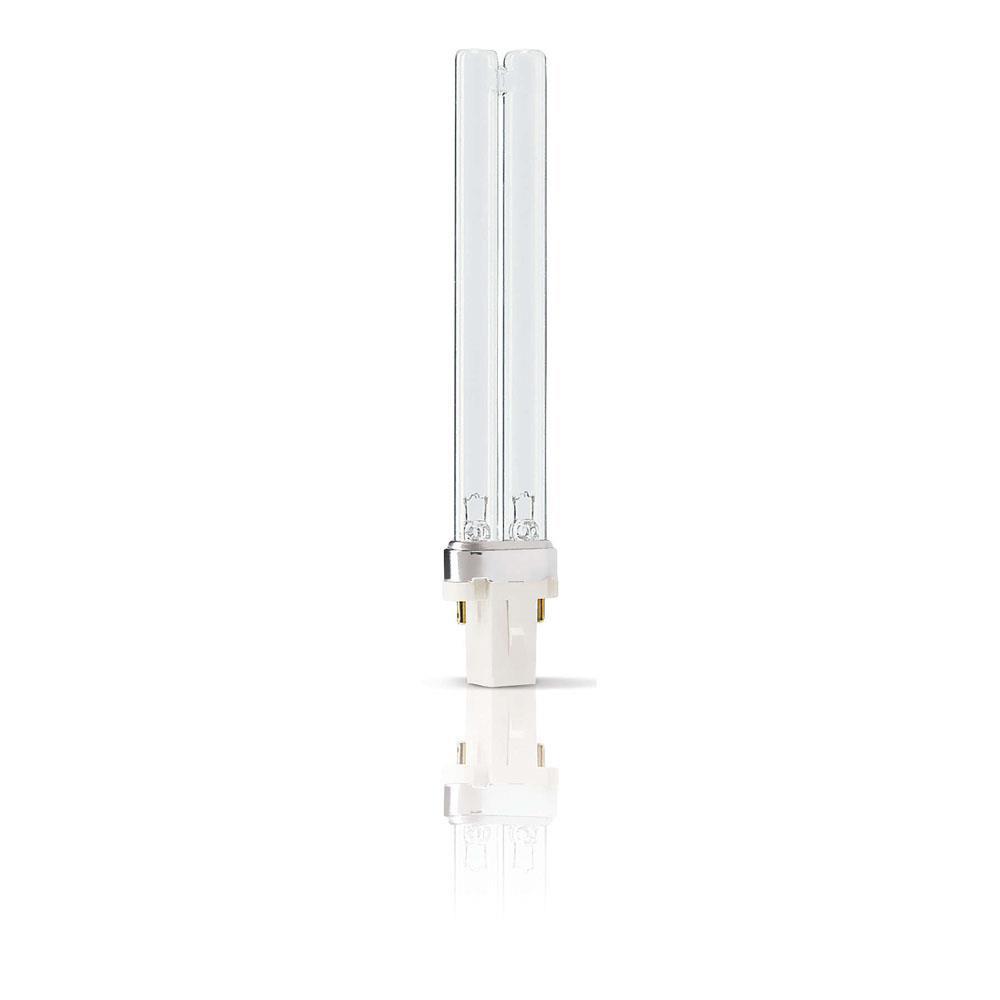

Philips TUV lamps are compact UVC (germicidal) lamps used in residential water, air disinfection and pond filter units. The compact size of the lamps allows for a small system design and design flexibility. Philips TUV lamps offer constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy. Thanks to the single-ended lamp base, lamp replacement is easy. The TUV PL-S & TUV PL-L lamps have a useful life of 9000hrs.


Philips TUV Lamp Specifications

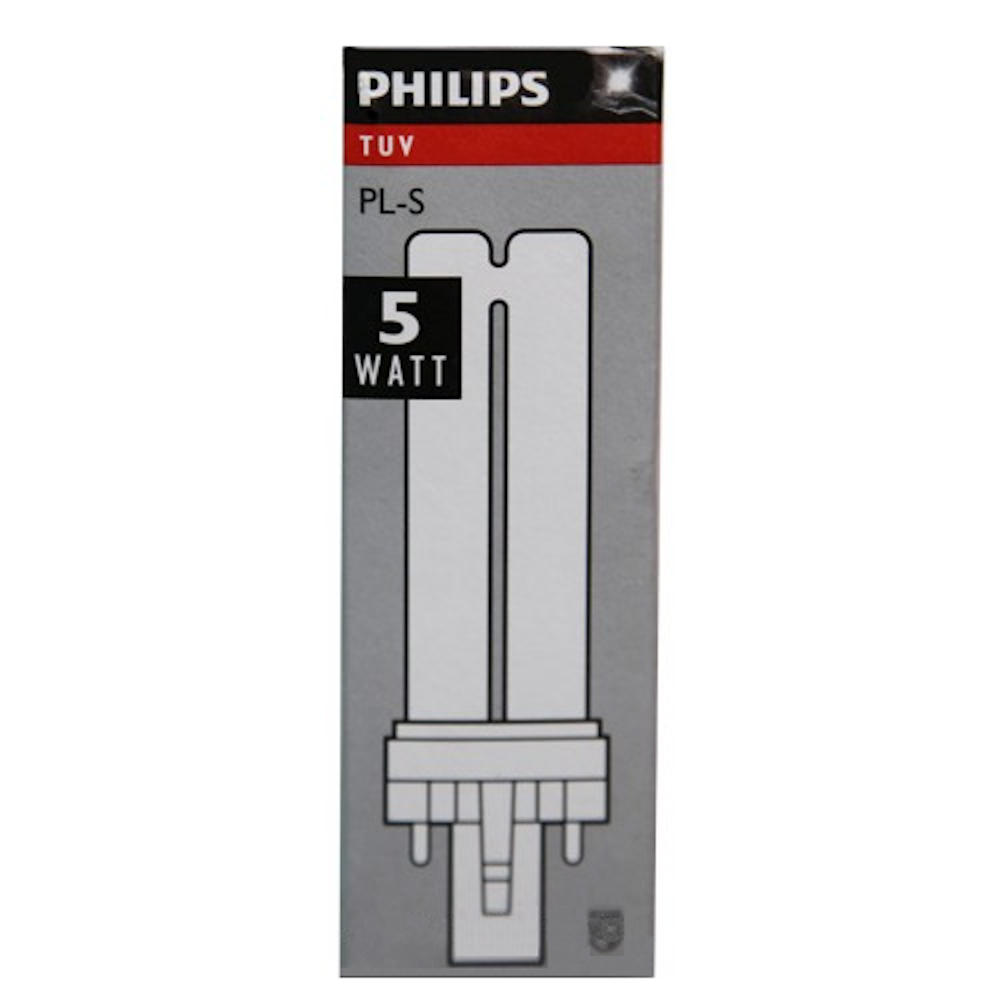

Model TUV PL-S 5W TUV PL-S 7W TUV PL-S 9W TUV PL-S 11W TUV PL-L 18W TUV PL-L 24W TUV PL-L 36W TUV PL-L 55W
UVC Lamp (Watts) 5.5 7.1 9 11 18 24 36 55
Voltage (Volts AC) 34 46 60 89 60 87 105 103
Current Draw (Amps) 0.18 0.175 0.17 0.16 0.37 0.345 0.44 0.54
Connection Pins 2 pin  2 pin 2 pin 2 pin 4 pin 4 pin 4 pin 4 pin

(SKU: AG2070)

Specifications

SKU AG2070
Brand Philips
Warranty Conditions Replacement Warranty
Type Pond Filtration

Replacement Warranty - Store warranty, this product needs to be returned to Aqua Gardening for testing and replacement.
